Importing XML Reports

This may turn out to be a silly question, but I'm looking for how to configure (specifically) the import of a PMD CPD XML report, using TC 8.1.

So these are my options (from the docs):


What I'm struggling with, is finding the XML report option under the build features (as per the attachment). As I understand, the XML reporting pluging has been bundled since TC 4.5 and I can also see it on the plugins list.

So now I've reverted to using service messages, but then I get this:

Starting: /var/lib/teamcity/buildAgent1/temp/agentTmp/custom_script4633204830888096178
[19:03:29]in directory: /var/lib/teamcity/buildAgent1/work/19e109b2347b09df
[19:03:29]##teamcity[importData type='pmdCpd' path='src/cpd.xml']
[19:03:29]Process exited with code 0
[19:03:29]Importing data from 'src/cpd.xml' (4.22 KB) with 'pmdCpd' processor
[19:03:29]Waiting for 1 service processes to complete
[19:03:29]PMD CPD report watcher
[19:03:29]Watching paths:
[19:03:29]/var/lib/teamcity/buildAgent1/work/19e109b2347b09df/src/cpd.xml
[19:03:29]PMD CPD report watcher
[19:03:29]1 reports found for paths:
[19:03:29]/var/lib/teamcity/buildAgent1/work/19e109b2347b09df/src/cpd.xml
[19:03:29]1 report skipped as out-of-date


Why would I get this report out-of-date message?

What is the best way to add this report? I've had it working on TC 7 before (on a different setup), so I'm not sure how I got it working then and what changed.


Attachment(s):

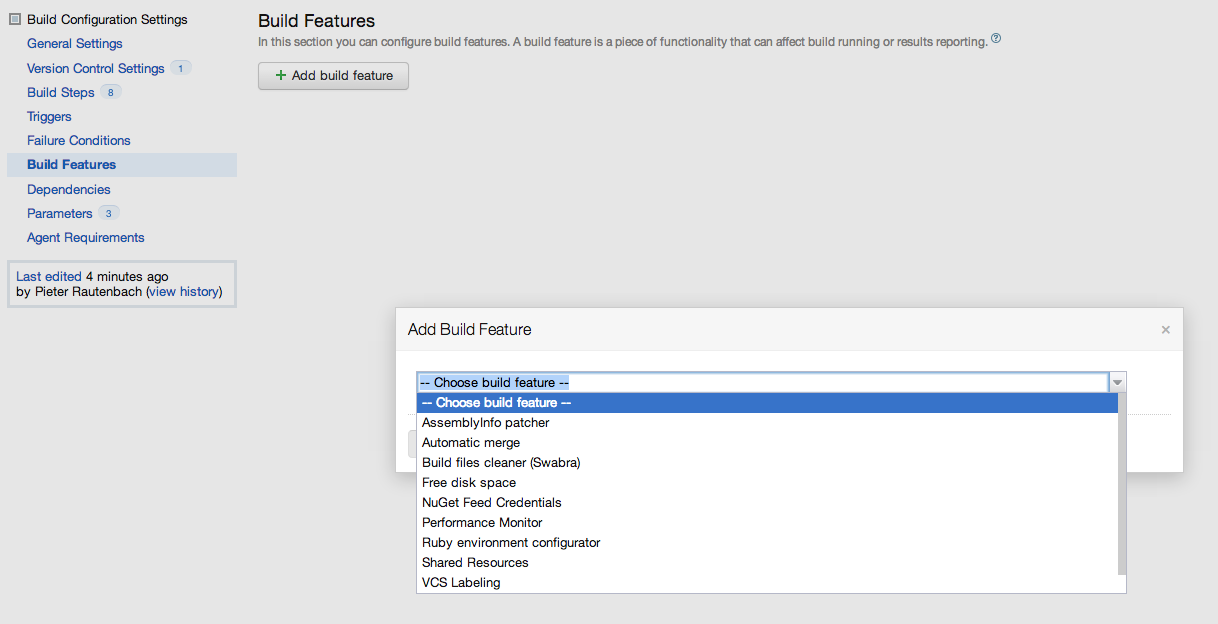

Screen Shot 2014-08-11 at 19.09.54.png
3 comments
Comment actions Permalink

So this DID turn out to be a silly question: On OS X, with the default setting being that the scroll bar is hidden, I couldn't see the last item in the dropdown -- which is the XML reporting option.

That said, it is still strange that the option using service messages fails.

0
Comment actions Permalink

Hi,

"<x> reports skipped as out-of-date" message means that report was created before the build started and most probably it is not related to this build.
You can add the parseOutOfDate='true' attribute to process all the files matching the path. Otherwise, only those updated during the build (is determined by last modification timestamp) are processed.

0
Comment actions Permalink

Thank  you, that would make sense if the working directory isn't cleaned before it's built (i.e. there are still files remaining from the previous run). That might've been the case.

0
